Nginx Reverse Proxy with Let's Encrypt SSL — Complete Production Guide

Running multiple web apps on one server — Node.js on port 3000, a Python API on 8080, a static site on 9000 — is normal in production. Exposing every port to the internet is a security mistake. The standard pattern is a single Nginx reverse proxy on ports 80/443 that routes by hostname and terminates TLS.

This guide covers the full workflow: install Nginx, configure virtual hosts, obtain free Let's Encrypt certificates with Certbot, enable HTTP→HTTPS redirects, set security headers, and automate renewal. Tested on Ubuntu 22.04/24.04 and AlmaLinux 9.

Time required: 45–60 minutes. Prerequisites: a domain pointing to your server (A record), ports 80 and 443 open.

Table of contents

1. Architecture: why reverse proxy + SSL termination
2. Install Nginx
3. Backend application (example)
4. Reverse proxy server block
5. Obtain Let's Encrypt certificate with Certbot
6. Force HTTPS and security headers
7. Multiple domains and WebSocket proxying
8. Certificate auto-renewal
9. Troubleshooting and verification

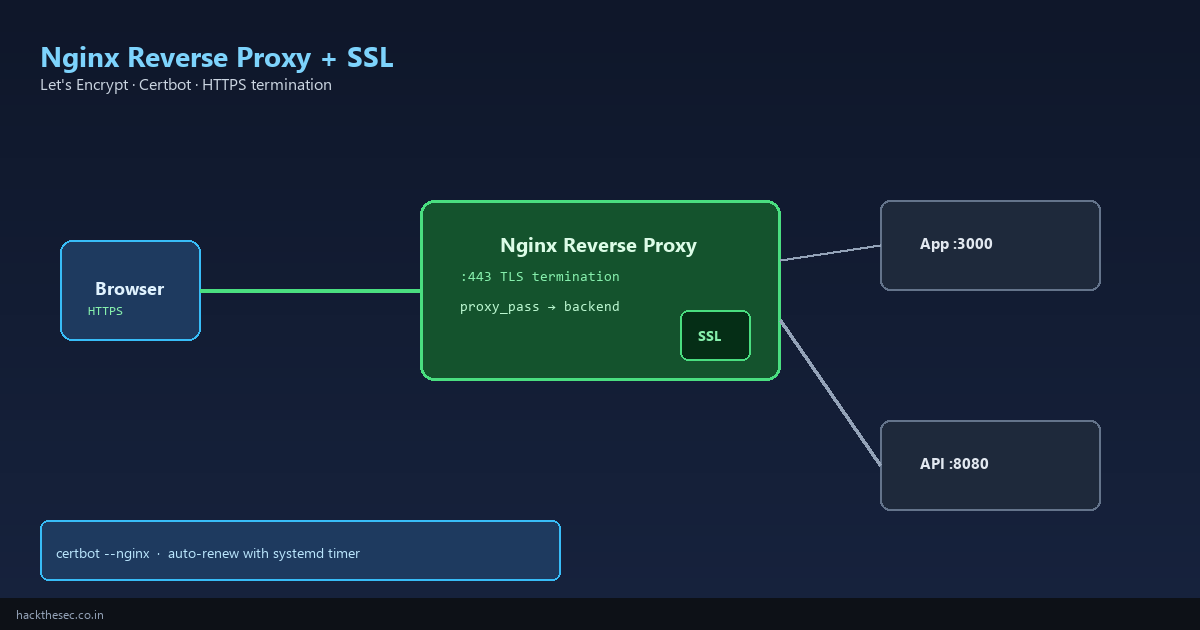

1. Architecture

Internet → Nginx :443 (TLS) → proxy_pass → app :3000 (HTTP, localhost only)
         → Nginx :80  → 301 redirect to HTTPS

• One certificate per domain on Nginx — backends stay on HTTP locally
• Firewall: allow 80/443 only; block direct access to app ports
• Certbot validates domain ownership via HTTP-01 challenge on port 80

2. Install Nginx

Ubuntu / Debian:

sudo apt update
sudo apt install -y nginx
sudo systemctl enable --now nginx
sudo nginx -t
curl -I http://localhost

AlmaLinux / Rocky / RHEL:

sudo dnf install -y nginx
sudo systemctl enable --now nginx
sudo firewall-cmd --permanent --add-service=http
sudo firewall-cmd --permanent --add-service=https
sudo firewall-cmd --reload

3. Example backend (Node.js on localhost:3000)

Your app must listen on 127.0.0.1, not 0.0.0.0, when behind Nginx:

# systemd unit /app/server.js binds to localhost
app.listen(3000, '127.0.0.1', () => console.log('API on :3000'));

# Verify backend responds
curl -s http://127.0.0.1:3000/health

4. Reverse proxy server block

Create /etc/nginx/sites-available/app.example.com (Debian) or /etc/nginx/conf.d/app.example.com.conf (RHEL):

server {
    listen 80;
    listen [::]:80;
    server_name app.example.com;

    location / {
        proxy_pass http://127.0.0.1:3000;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_read_timeout 90s;
    }
}

# Debian: enable site
sudo ln -s /etc/nginx/sites-available/app.example.com /etc/nginx/sites-enabled/
sudo nginx -t && sudo systemctl reload nginx

5. Let's Encrypt with Certbot

Ubuntu / Debian:

sudo apt install -y certbot python3-certbot-nginx
sudo certbot --nginx -d app.example.com --non-interactive --agree-tos -m admin@example.com

# Certbot edits your server block to add SSL listen 443 ssl;
# Certificate paths:
#   /etc/letsencrypt/live/app.example.com/fullchain.pem
#   /etc/letsencrypt/live/app.example.com/privkey.pem

AlmaLinux / Rocky:

sudo dnf install -y certbot python3-certbot-nginx
sudo certbot --nginx -d app.example.com

After Certbot runs, your config will include something like:

server {
    listen 443 ssl http2;
    listen [::]:443 ssl http2;
    server_name app.example.com;

    ssl_certificate /etc/letsencrypt/live/app.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/app.example.com/privkey.pem;
    include /etc/letsencrypt/options-ssl-nginx.conf;
    ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem;

    location / {
        proxy_pass http://127.0.0.1:3000;
        # ... proxy headers as above
    }
}

6. Force HTTPS and security headers

Certbot usually adds the port 80 redirect. Verify:

server {
    listen 80;
    server_name app.example.com;
    return 301 https://$host$request_uri;
}

Add security headers inside the server { listen 443 ... } block:

add_header Strict-Transport-Security "max-age=31536000; includeSubDomains" always;
add_header X-Frame-Options "SAMEORIGIN" always;
add_header X-Content-Type-Options "nosniff" always;
add_header Referrer-Policy "strict-origin-when-cross-origin" always;

7. Multiple domains and WebSockets

Second app on api.example.com → port 8080: duplicate server block with different server_name and proxy_pass.

For WebSocket upgrades (Socket.io, Grafana, etc.):

location /ws {
    proxy_pass http://127.0.0.1:3000;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";
    proxy_set_header Host $host;
}

8. Certificate auto-renewal

# Certbot installs a systemd timer or cron job automatically
sudo systemctl list-timers | grep certbot

# Dry-run renewal test
sudo certbot renew --dry-run

# Manual renewal (if needed)
sudo certbot renew --quiet && sudo systemctl reload nginx

Let's Encrypt certificates expire every 90 days. The timer renews when <30 days remain.

9. Troubleshooting

# Useful debug commands
sudo nginx -t
sudo tail -f /var/log/nginx/error.log
curl -vI https://app.example.com
openssl s_client -connect app.example.com:443 -servername app.example.com </dev/null 2>/dev/null | openssl x509 -noout -dates

You now have a production-grade Nginx reverse proxy with free auto-renewing TLS. Next hardening steps: rate limiting (limit_req), ModSecurity WAF, and blocking direct IP access in a default server block.
